将无线升级,升级,再升级。

WWB6

Wireless Workbench® 6 软件

对于您的音响系统而言,射频是敌亦是友。不过,有一个软件解决方案能够确保信号在所有场合都能为您所用,那就是 Wireless Workbench™ 6 软件系统。

Wireless Workbench 6 让您能够在不中断声音输出的前提下远程监控和管理每个舒尔无线系统。丰富的用户界面。强大的功能。通过网络即可管理和监控无线系统性能。时间轴功能还能让您跟踪射频数据并在后期制作中检查射频性能。从演出前的策划到演出后的分析,Wireless Workbench 6 让您能够气定神闲地完成理想的演出。

快速管理

用户可以保存并快速应用参数设置,以实现更简易的设备操作。

即时协调

射频一致的情况极为罕见。拓展的设备配置文件让您能够更灵活地分类和管理扫描峰值并进行即时自定义操作。

全企业联网

多个子网可让您远程连接更多设备,而访问控制则可确保只有被允许的用户才能进行网络操作。

  • 免费下载
  • 通过 Shure Update Utility 进行集成更新
  • 兼容 Windows 8 和 10 以及 Mac OS X Hi Sierra, Mojave, Cataline, 和 Big Sur
  • 适用于笔记本电脑,让您随时随地灵活使用

下载 WWB6

版本 6.15.3 | 所有更新

兼容产品

SBC250

2单元联网插座充电器

紧凑型联网插座充电器为ULXD6或ULXD8发射机充电,可采用机架式或壁挂式,并配有可选的URT3机架托盘。

ULXD4Q

ULX-D四通道数字无线接收机

ULXD4Q四通道数字无线接收机,耐用的1U机架式结构设计

已停产
AXT400

AXT400

Axient 双通道接收机

AXT400 双通道接收机结合了先进的模拟和数字技术,能够提供卓越的射频和音频性能。

QLXD4

QLX-D数字无线接收机

QLX-D数字无线系统之无线接收机

ULXD4

ULX-D数字无线接收机

半机架式、可联网无线接收机

ULXD4D

ULX-D双通道数字无线接收机

ULXD4D双通道数字无线接收机,耐用的1U式机架式结构设计

已停产
UR4S+

UR4S+

UHF-R单通道无线接收机,可级联

UR4S+和UR4D+接收机同属于舒尔旗舰版UHF-R系统,分别是单通道和双通道无线产品中的顶级选择。 两款产品都采用了最新的技术,具有先进的控制性能和更大的灵活性,适合各种专业应用。允许多达10个接收机级联共用一对天线。

已停产
UR4D+

UR4D+

UHF-R双通道无线接收机,可级联

UR4S+和UR4D+接收机同属于舒尔旗舰版UHF-R系统,分别是单通道和双通道无线产品中的顶级选择。 两款产品都采用了最新的技术,具有先进的控制性能和更大的灵活性,适合各种专业应用。允许多达10个接收机级联共用一对天线。

P10T

双通道无线发射机

P10T全机架、双通道无线发射机采用先进技术,具有巡演级功能,适用于各种不容许有丝毫差错的专业监听应用。

SBRC

机架充电器

在单个机架空间内容纳多达 8 个舒尔可充电腰包式和手持式发射机电池。兼容舒尔充电电池 AXT910、AXT920 和 SB900A。

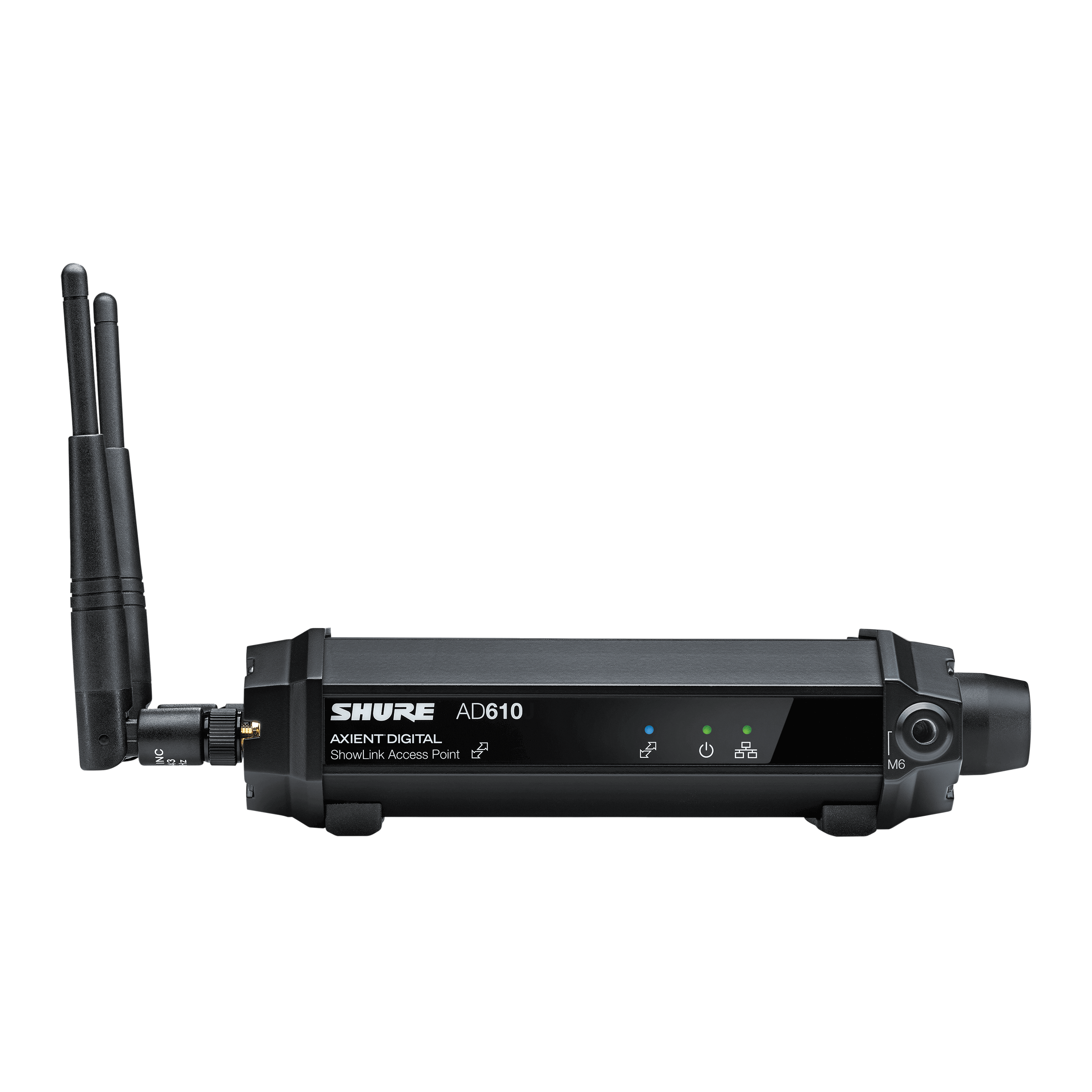

AD610

Diversity ShowLink® 接入点

AD610为所有链接的发射机和接收机提供无线ShowLink连接。ShowLink技术提供出众的远程控制和监控功能,无论您面对什么样的射频环境,都能轻松协调清晰、可用的频率。

AD4D

Axient双通道数字无线接收机

双通道数字接收机

AD4Q

Axient四通道数字无线接收机

AD4Q 四通道数字接收机

已停产
UR5

UR5

UHF-R便携式UHF-R无线接收机

无线接收机UR5精巧且便于携带,适合电子新闻采集(ENG)、专业领域与媒体制作。该接收机基于著名的UHF-R技术,完全兼容UHF-R发射机。

ULX-D™

数字无线系统

舒尔ULX-D™专为专业扩声应用定制,提供毫不妥协品质的无线数字系统。

ULXD6

ULX-D 无线界面话筒发射机

兼容ULX-D数字无线系统的无线界面发射机

ULXD1

ULX-D 腰包式发射机

ULXD1为无线腰包式发射机,与ULX-D™无线数字系统兼容。

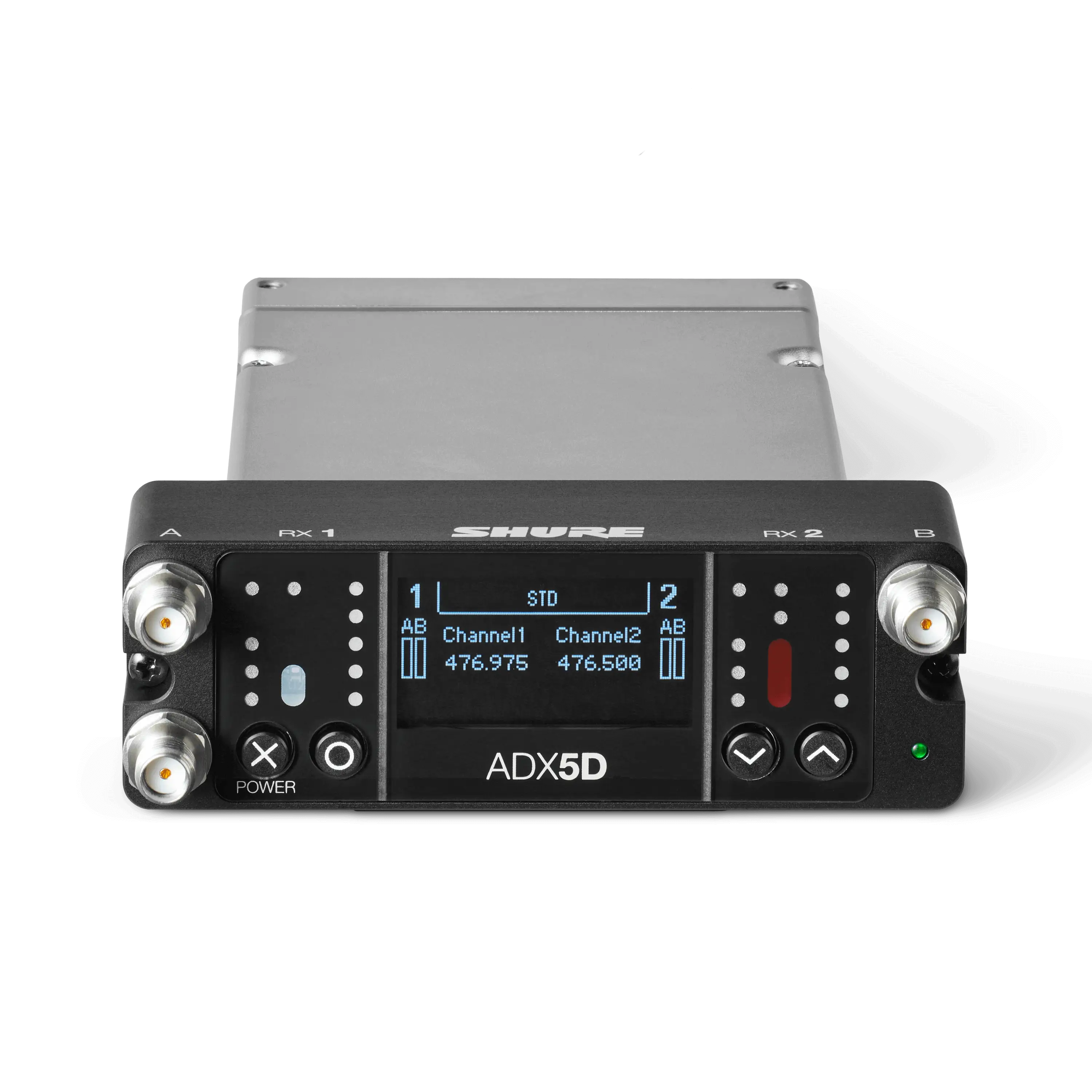

ADX5D

Axient® Digital Dual-Channel Portable Wireless Receiver

卓越的Axient Digital射频性能、频谱效率和清澈透亮的音质,采用便携式插槽设计。 Axient Digital。 目前采用便携式设计。

SLX-D

数字无线系统

从报告厅到教堂再到表演场所,SLX-D可通过一套通用的无线系统配置为您提供清晰的24位数字音频,可靠的射频性能,以及简便的设置和可重复充电选项。

SLXD4

数字无线接收机

从报告厅到现场演出,SLXD4接收机是确保自信演讲和演出的理想之选。

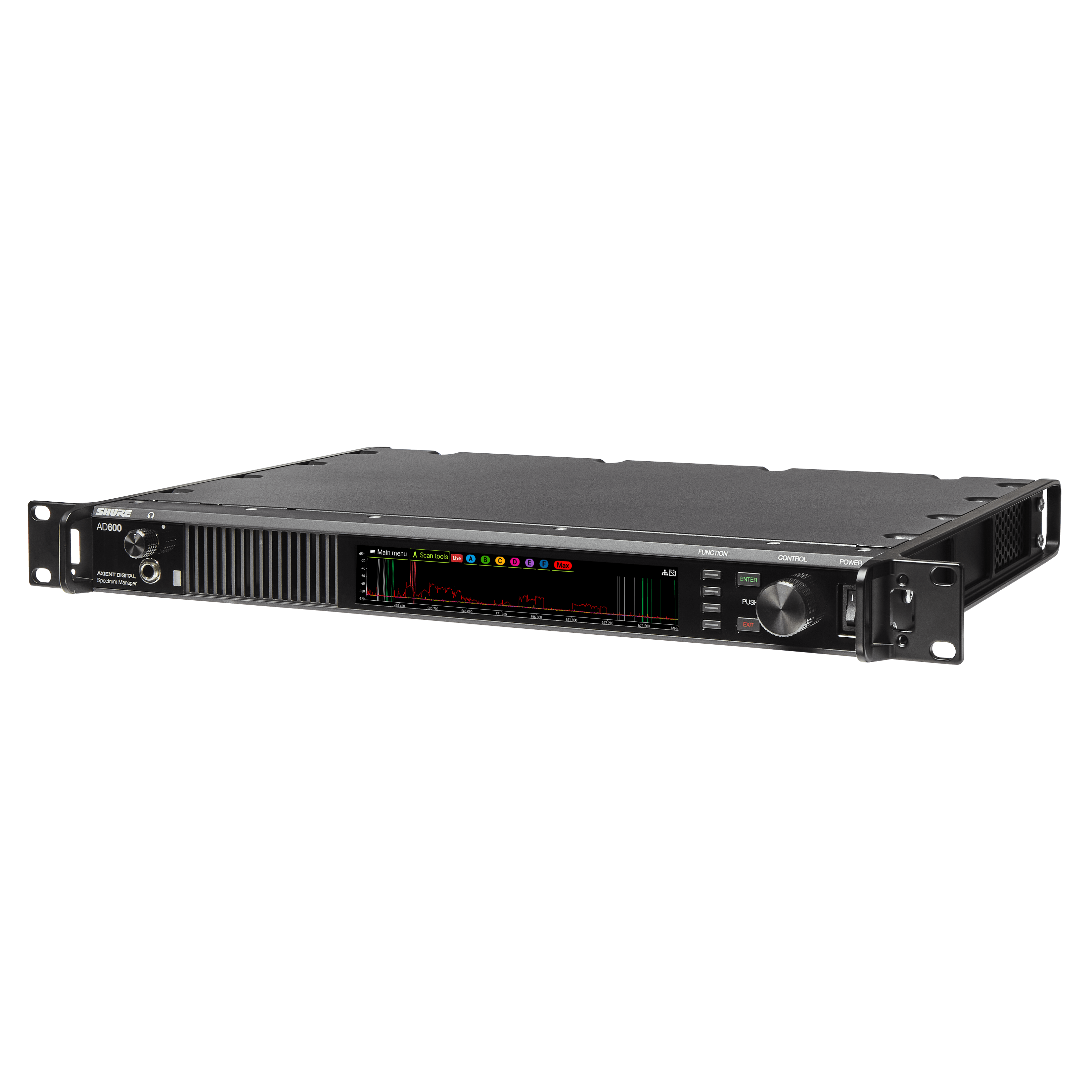

AD600

Axient™ Digital频谱管理器

下一代数字频谱管理器,具有实时扫描和监控功能,提供先进的频率协调。

支持

客户支持

售后服务与维修

有关客户服务,服务修改,以及部件更换的政策信息

售后服务与维修

联系我们

直接在此提交,或通过电话/邮件联系客户服务人员

联系我们

技术资源

Shure Tech Portal

完整的产品文档、技术支持信息,软件固件信息、产品比较以及其他技术工具和资源,都在Tech Portal

注册 launch

文档

发行说明

Version 6.15.3

Improvements

  • Improved Shure hardware support

Known Issues

  • Wireless Workbench may crash when importing scan files from an AXT600 when a device or channel name has special characters in it such as “/”.
    • Workaround: remove special characters from the device or channel name.
  • Snap Cursor does not presently work for Live Scans on ShowLink Plots.
  • Certain AD600 property panel items are not presently translated into languages other than English.
  • Wireless Workbench is limiting a continuous scan to 8 hours.
  • Battery type may not persist between power cycles for SLX-D transmitters on firmware version 1.0.13. To resolve, you must set the battery type on the transmitter again.
  • ULX-D receivers running firmware version 2.0.28 or earlier may trigger a Settings Conflict when rediscovered after updating their firmware to version 2.1 or later. There is no issue with the device—there was simply a new property added in version 2.1. To dismiss the alert, resolve the Settings Conflict by selecting the properties you wish to keep.
  • The Timeline System Event “Active Transmitter Online” for ULXD6/8 transmitters does not always include Transmitter Device ID in the event description.
  • SLX and ULX frequencies in Master List mode cannot be manually entered in the Coordination Workspace. They can, however, be coordinated and analyzed.
  • While working in the RF Coordination or Frequency Plot, the scan data peaks change depending on horizontal zoom level.
  • In certain scenarios, the Frequency List dialog is empty and the CFL is not imported from AXT600.
  • While Timeline is running, markers will not display when changing FD-Override from current state to a new state.

Notes

  • User Guide
  • Supported operating systems
    • Windows
      • Windows 10, Intel Only
      • Windows 11, Intel Only
    • macOS
      • macOS 11 (Big Sur), Intel and Apple Silicon
      • macOS 12 (Monterey), Intel and Apple Silicon
      • macOS 13 (Ventura), Intel and Apple Silicon
      • Note: WWB 6.15.2 was the last release to support macOS 10.15 (Catalina)
  • Opening show files created with older versions of Wireless Workbench may result in the Settings Conflicts dialog opening once the file has loaded. This is due to newly supported hardware parameters that may have been introduced with updated firmware versions. To maintain all settings from the show file, select "Keep all settings from: Wireless Workbench."
  • Alerts logged when devices first come online may list device parameters and their values as they are being discovered even though the parameter values themselves have not changed.
  • The ability to request replacement frequency band labels through the Frequency Band Conversion Tool and Report has been discontinued. The band conversion function is still available for use in WWB6. For more information, please refer to the WWB Help System in the application, or contact Shure Applications Engineering.
  • To operate this version of Wireless Workbench with other Shure products, reference the following list of recommended versions:
    • Axient Digital 1.4.7
    • AD600 1.0.39
    • Axient 2.1.41
    • PSM1000 1.7.10
    • QLX-D 2.6.2
    • SLX-D 1.1.2
    • UHF-R 1.171
    • ULX-D 2.7.3
    • SBC220/240 Two-bay Chargers 1.4.7
    • SBC250/450/850 Networked Charging Stations 2.7.3
    • SBRC Shure Battery Rack Charger 1.1.6
    • Shure Update Utility 2.8.0
    • ShurePlus Channels iOS 1.6.0
    • ShurePlus Channels Android 1.6.0
